Hydro-Cooled Mining System

For Bitcoin Mining — Scalable, Efficient, Ready to Deploy

Hydro-Cooled Mining Containers built for industrial Bitcoin farms. Delivers 1.2–2.4 MW of power with integrated CDU, dry cooler, and PLC automation. UL-certified with PUE as low as 1.03.

Get a Fast Quote

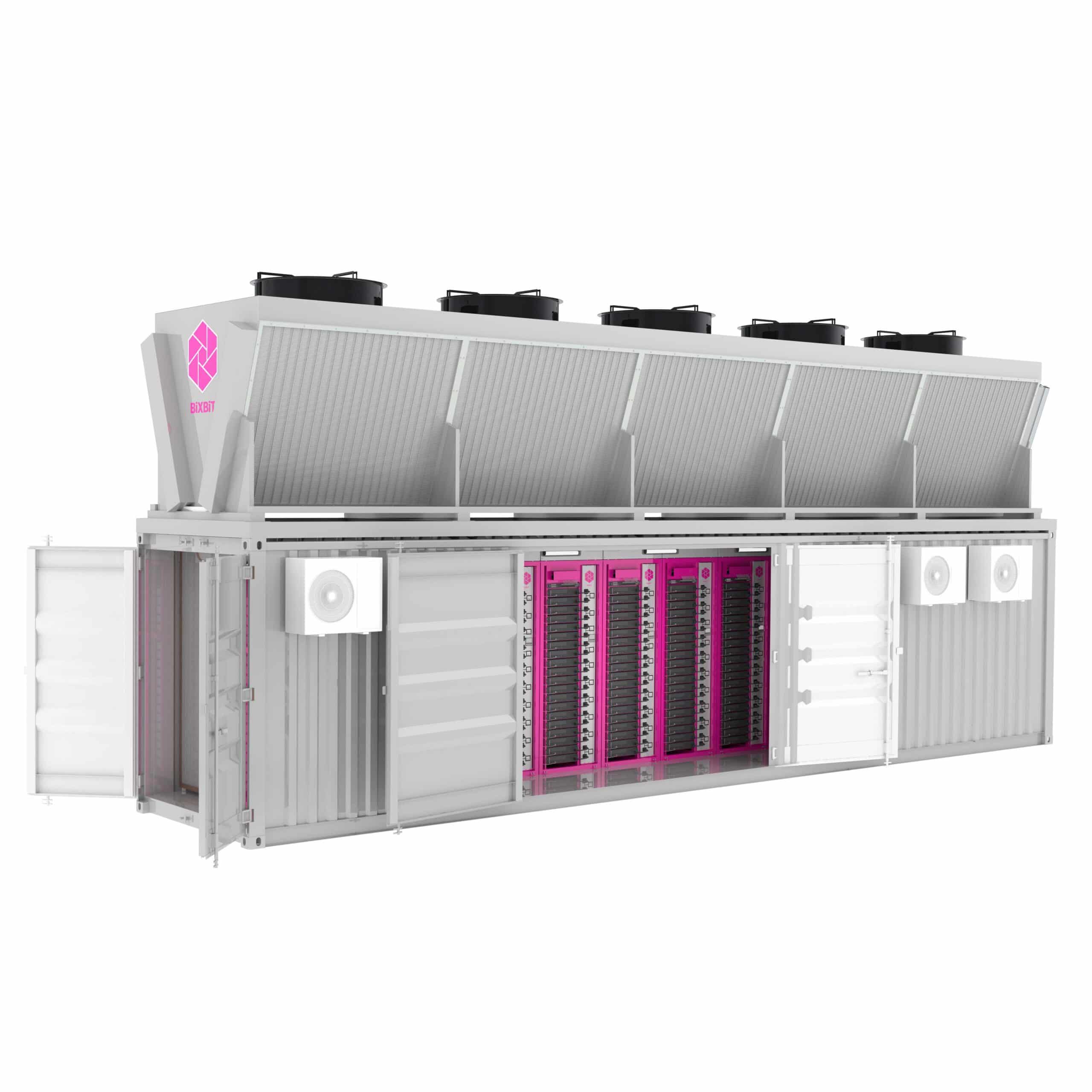

Each BiXBiT Hydro Container delivers 1.2 MW or 2.4 MW of cooling capacity in a pre-engineered, 40-foot HQ unit.

The system is built for continuous operation, ensuring stable hashrates and reduced downtime for high-capacity mining operations.
The unit arrives fully configured, requiring only power and water connections on-site. With pre-installed racks, CDU systems, hydraulic piping, and integrated monitoring, deployment is fast, simple, and cost-efficient.
  • High density with
    lower costs

Deploy up to 240 miners per container, reducing footprint and infrastructure spend.

  • Turnkey deployment

CDU, Smart PDU, racks, and dry cooler all factory-integrated, cutting build time from months to weeks.

  • Engineered for uptime

N+1 redundant pumps, automated monitoring, and UL/IEEE-certified components ensure 24/7 reliability.

Container Size: 40 ft HQ
Miner Capacity: Up to 240 ASIC Hydro units
Cooling Capacity: 1.2 or 2.4 MW
Water Flow Rate: ~26,400 gal/hr (100 m³/hr)
Water Inlet Temperature: 104 °F (40 °C) @ 95 °F ambient
Water Outlet Temperature: 131–140 °F (55–60 °C)
Electrical Supply: 2 × 1200A, 3-phase, 380–480 V, 50/60 Hz
Monitoring & Control: Smart PLC touchscreen, leak detection, temperature control, alarms
Noise: < 76 dB(A) @ 33 ft
Weight (shipping): ~15.4 tons

Request Your Hydro-Cooled Container Quote

Submit your configuration — our engineering team will deliver pricing and drawings within 24 hours.
1
2
When do you need delivery?*
Best Way to Contact You?*

Why Operators Choose BiXBiT Hydro-Cooled Mining Containers

💧 High-Density Cooling

Up to 2.4 MW per unit; PUE ≈ 1.03

Plug-and-Play Deployment

Fully wired, pre-tested modules — ready to power on arrival.

⚙️ Integrated CDU + Dry Cooler

Certified Components

Parameter 1.2 MW Model 2.4 MW Model
Cooling Capacity 1.2 MW 2.4 MW (double loop)
Miner Capacity 120 × Whatsminer M63/M53 Hydro 240 × Whatsminer M63/M53 Hydro
Container Size 40 ft HQ (12192 × 2438 × 2896 mm) 2 × 40 ft HQ combined module
Racks 6 12
Cooling Medium Pure or soft water + antifreeze/corrosion inhibitor Same
Water Flow Rate 100 m³/h 200 m³/h
Water Inlet Temp 40 °C @ 35 °C ambient Same
Flange Connection DN100 DN150
Max Power Load 1.4 MW 2.8 MW
Power Supply 2 × 1200 A (3-Phase 380–480 V, 50/60 Hz) 4 × 1200 A (dual feed)
Network 6 × 100 Mbps Switches 12 × 100 Mbps Switches
Monitoring & Control PLC HMI with constant-pressure control & alarms Dual PLC redundant controllers
Ambient Temp Range –20 °C to 45 °C (5–95 % RH) Same
Noise Level < 76 dB(A) @ 10 m < 78 dB(A) @ 10 m
Certification UL marked components UL marked components
Non-Mining Power Use 70 kW 140 kW
PUE ~ 1.03 ~ 1.03
Shipping Weight 14 T 28 T

Technical Specifications

Designed for Industrial-Scale Mining Projects

01

Bitcoin Mining Farms (Utility and Private Power Sites)

02

Energy Producers Deploying Behind-the-Meter Solutions

03

Turnkey Hosting and Co-location Facilities

Built to Global Standards

Every BiXBiT system is designed with operator safety and compliance at its core. From emergency shutoffs and leak detection to fire monitoring systems, our infrastructure is built to protect your operations.

All products are fully compliant with UL, ANSI, and IEEE standards — ensuring reliability, safety, and peace of mind.

BiXBiT USA Support and Warranty

All Hydro Containers include a 12-month standard warranty with options for extended coverage up to 36 months.

BiXBiT USA provides remote support via AMS integration, plus on-site commissioning and training on CDU systems.

Deploy 1.2 MW or 2.4 MW of Cooling Power in Weeks

Submit your project specs and receive your custom engineering proposal within 72 hours.
