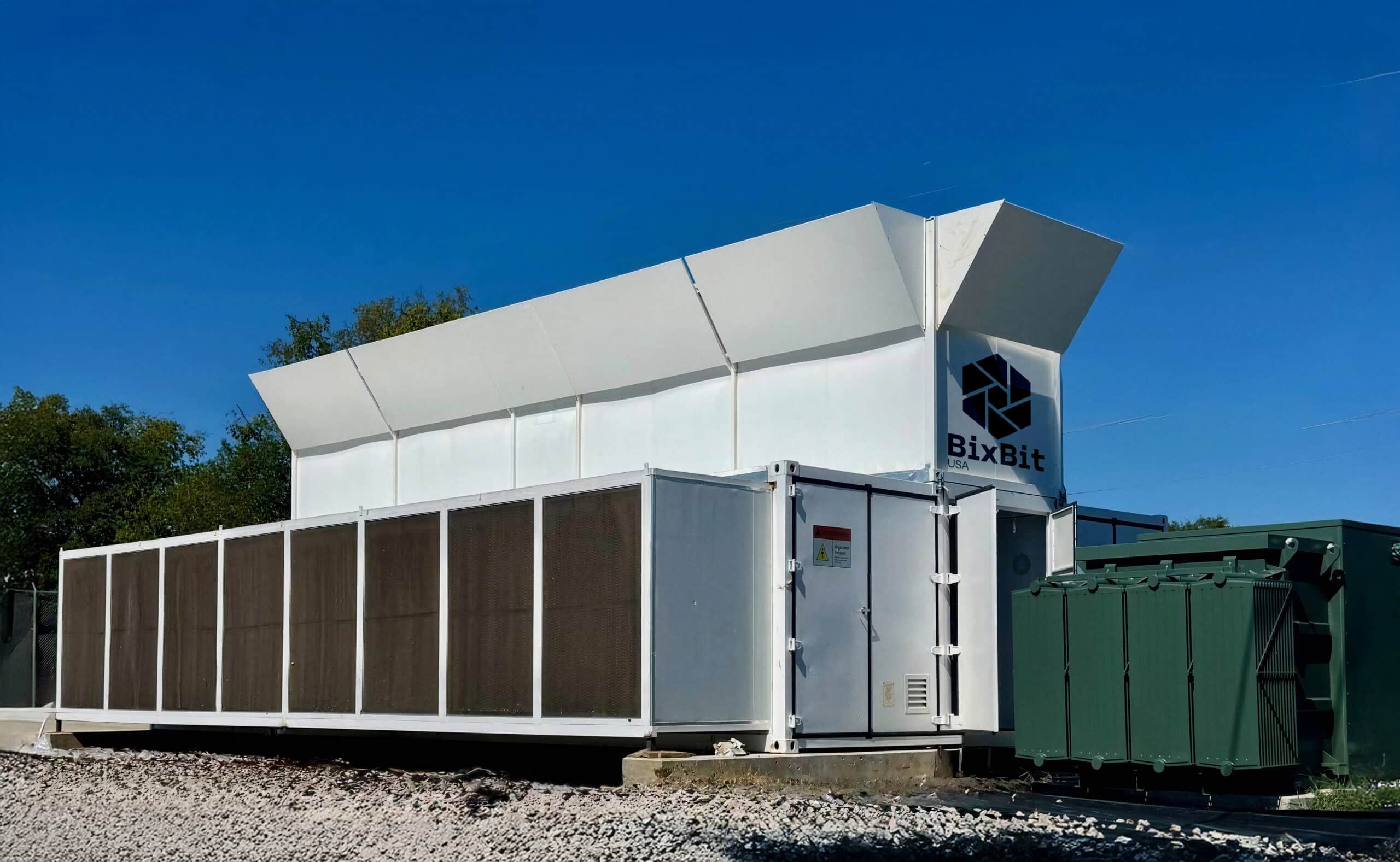

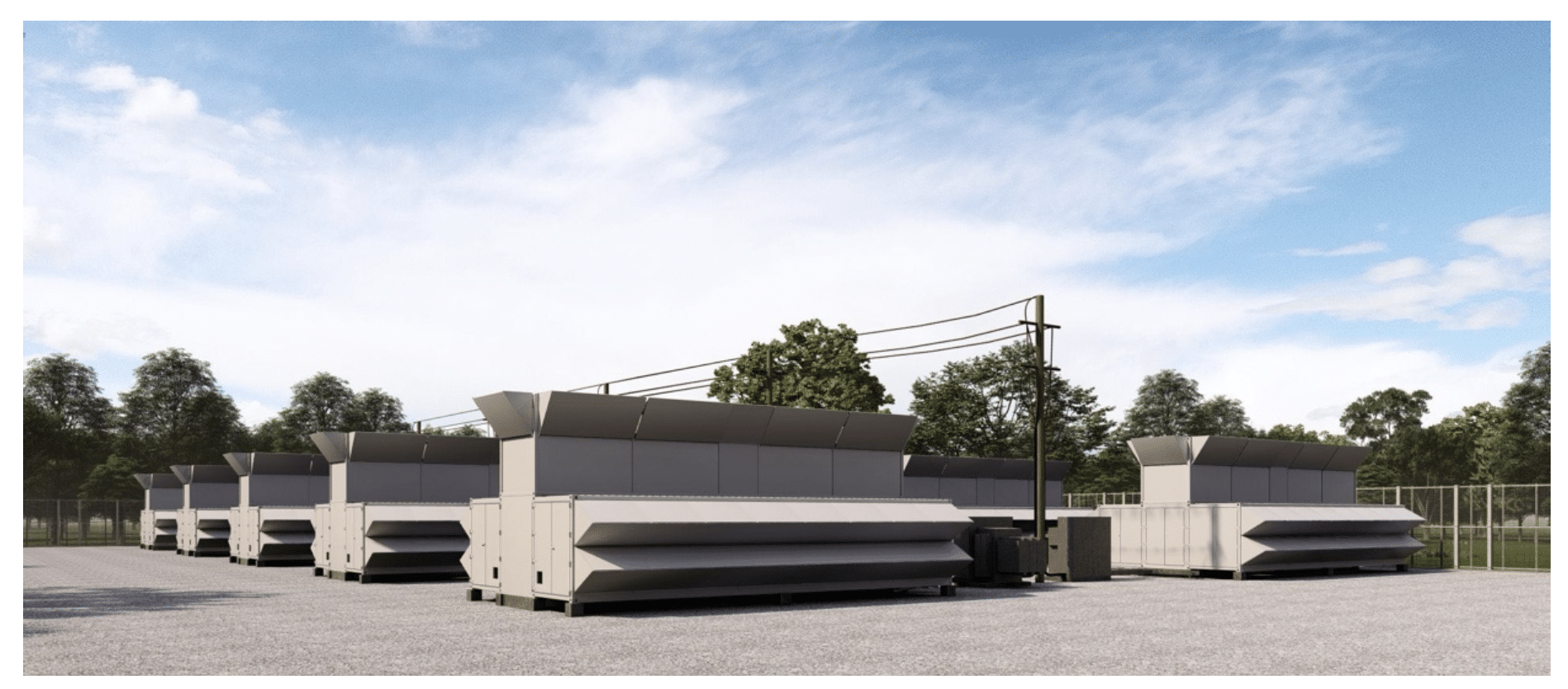

Air-Cooled Mining System

Plug-and-play modular Air-cooled mining system engineered for large-scale Bitcoin mining environments.

Certified to UL 2755— fully prefabricated, stackable, and ready to deploy in any climate.

Get a Fast Quote →

Why Choose BiXBiT Air-Cooled Mining System

100% prefabricated and assembled under strict QC processes — minimal on-site work.

🧱 Factory Built & Tested

⚡ Plug-and-Play Deployment

🔩 Certified Reliability

📦 Scalable Architecture

UL 2755 / ETL Certified for North America.
Building Standard: UL 2755 Certified by Intertek (ETL)
Structure Analysis: Modeled in ABAQUS for frame strength
Airflow Analysis: CFD Simulated with ANSYS Fluent — verified no recirculation at 9 m/s cross breeze
Cooling Method: Air Cooling with Water Curtains + Automatic Humidity Control
Total Power Capacity: 2 × 1.0 MW (2 × 2000 A Main Breaker)
Power Supply: 3-Phase 380–415 V, 50/60 Hz
PDU Breakers: 2 × 32 × 80 A
Filling Capacity: Up to 720 ASIC Miner Spaces
Dimensions (L × W × H): 11.7 m × 6.6 m × 5.0 m
Weight: ~16 tons
External Color: White
Operating Temp: –35 °C to 40 °C
Stacking Capability: Up to 3 Containers High

Request Your Air Cool Mining System Quote

Submit your configuration — our engineering team will prepare pricing within 24 hours.
1
2
When do you need delivery?*
Best Way to Contact You?*

Smart Airflow and Optimized Cooling Performance

Air enters through dual intake chambers equipped with filters and water curtains. Hot air is channeled toward a central exhaust chamber and vented through 24 top-mounted fans.
This design was validated using CFD modeling to eliminate hot-air recirculation and maximize miner cooling efficiency.

Designed for Real-World Performance

Bitcoin Mining Sites

High-Wind or High-Temperature Regions

Temporary / Rapid-Deployment Mining Farms

Built to Global Standards

Every BiXBiT system is designed with operator safety and compliance at its core. From emergency shutoffs and leak detection to fire monitoring systems, our infrastructure is built to protect your operations.

All products are fully compliant with UL, ANSI, and IEEE standards — ensuring reliability, safety, and peace of mind.

Built on Proven Standards

01

UL-Certified Components

Every rack is built with UL-listed parts for safety and compliance.

02

12-Month Warranty

Backed by BiXBiT USA with optional extended coverage.

03

Global Deployments

Trusted by mining operations across North America, Europe, and Asia.
